M7

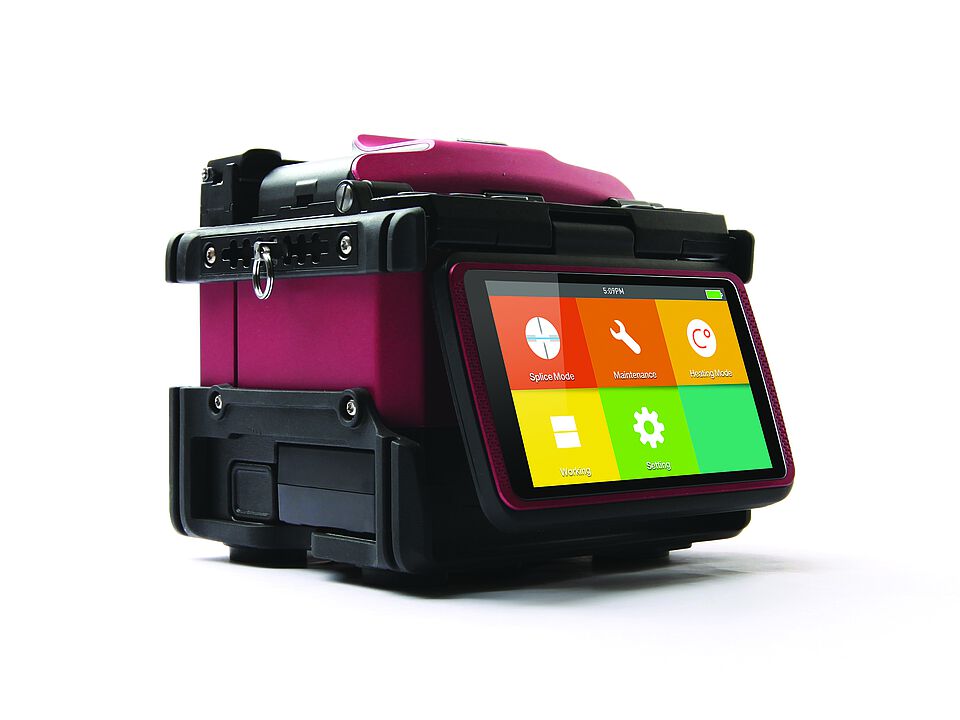

M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but powerful fusion splicer inherits many remarkable functionalities from sister products. M7's 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, user can Zoom In & Out the image to the outstanding magnification of 400x.
Moreover, the adjustable strap hanger make users to customize M7 for their working condition. M7 is genuinely world's most efficient hand-held fusion splicer in the telecommunications industry.

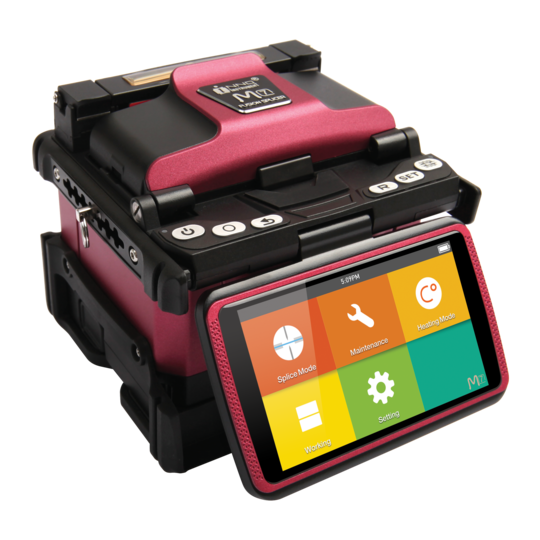

M7, Ultra-Portably Designed Active V-Groove Fusion Splicer

Waterproof

Protected from Dust

Shockproof

Display & Interface High Visibility Optimized for Working Environment

Display & Interface

4.3" High resolution Touch screen
 Max. 400X magnification
 User-friendly Smart GUI

M7

Specifications

Dimension

124H x 144W x 131D mm (including rubber bumper)


Weight

1.31 KG (without battery) /
1.56 KG (with battery)


Display

Touch Screen / Button


Number of Fibres

Single

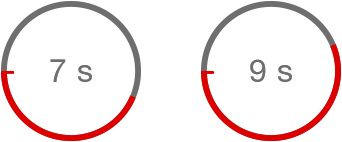

Splicing Time

Fast Mode: 7 sec
SM Mode: 9 sec


Heating Time

Fast Mode: 15 sec


Fiber View & Magnification

400x Magnification


Application Fibres

SM/MM/DS/NZDS


Lighting

2 White LEDs


RESULT STORAGE
Max. 10,000 splice results (excel + image)
TERMINAL
USB Tpye-C
COMPATIBLE FIBER CABLE
0.25~3.0mm/Indoor Cable
CLEAVED LENGTH
10~16mm
CLADDING DIAMETER
80~150㎛
SPLICING MODE
MAX 100 modes, Preset 9 modes
HEATING MODE
MAX 30 modes, Preset 4 modes
TYPICAL SPLICE LOSS
SM:0.03dB/MM:0.01dB/DS:0.05dB/NZDS:0.04dB/
G.657:0.03dB(ITU-T Standard)
RETURN LOSS
>>60dB
ESTIMATED SPLICE LOSS
Available upon request.
HEATING SLEEVE LENGTH
20~60mm
TENSION TEST
1.96~2.25N
OPERATING CONDITION
Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~-50°C, Max Wind 15m/s
STORAGE CONDITION
0~95% relative humidity, -40~80°C
POWER SUPPLY
AC Input 100-240V, DC Input 9-14V
NO. OF SPLICE /HEATING WITH BATTERY
3000mAh Battery Capacity, Typical 110 times (Splice+Heat)
ELECTRODE LIFE
5500 arcs, can be extended by using an electrode grinde
