Fiber Microscope

V 20

The Fiber Microscope is chiefly used in checking if the fiber end-face is clean. With the ability to display a clear image and the double amplification function, the V20 is able to analyze the cleanliness of the fiber end-face.

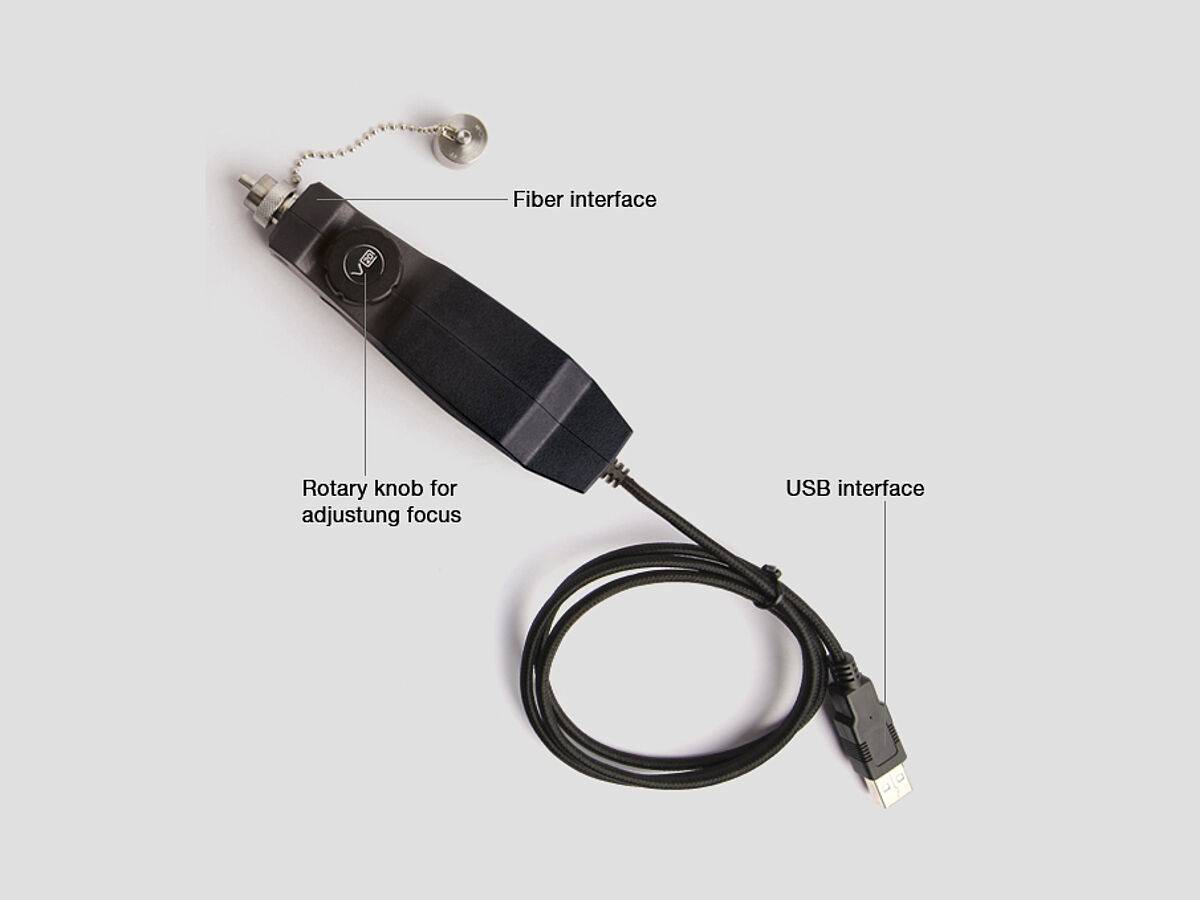

Handheld fiber microscope


 Detecting fiber connection

 Centering the image

 Image magnification

 Adjust the focus

 Analyze data to judge whether passed of failed Testing report

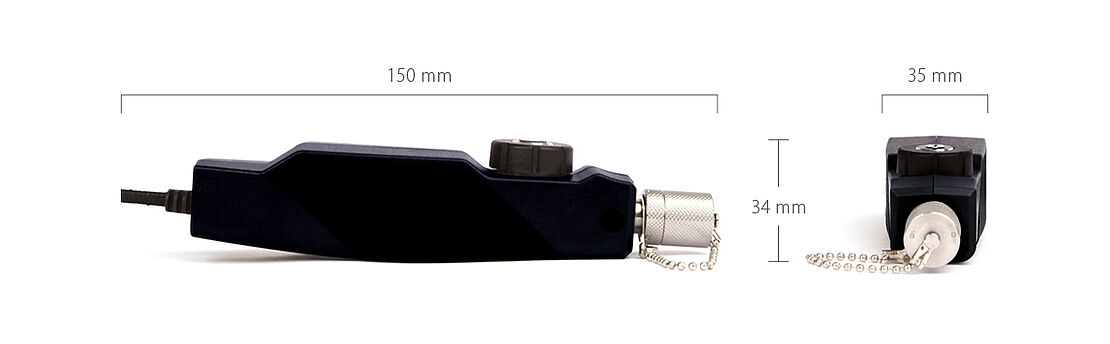

Size and Weight

Size: 34H x 150W x 35D mm
Weight : 0.37 pounds (168 grams)

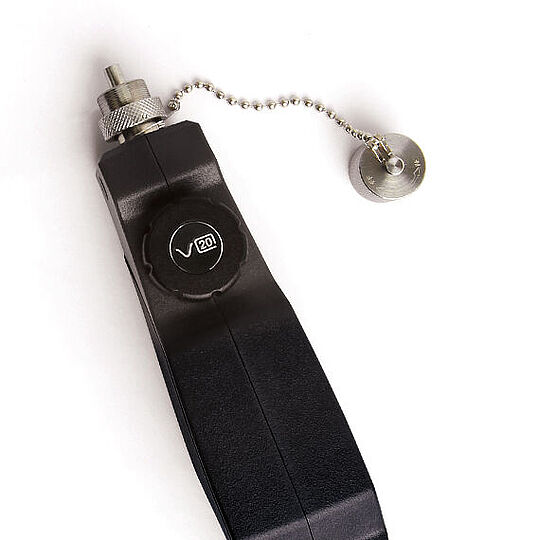

V20 Microscope

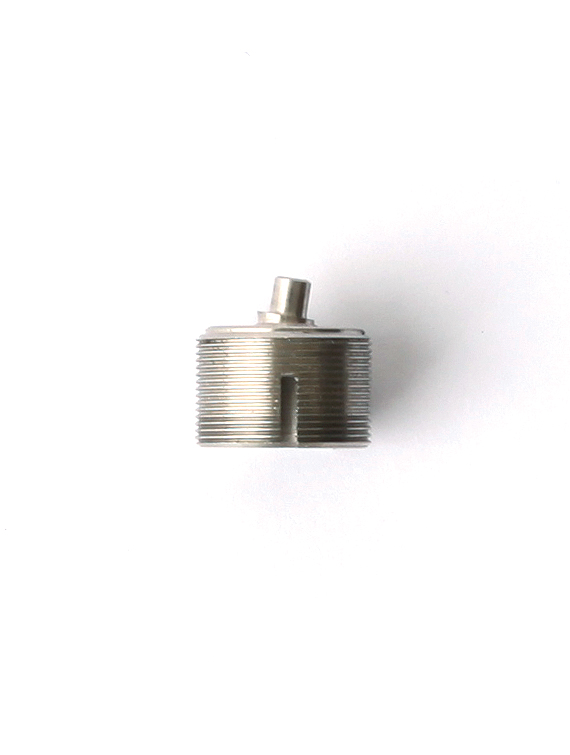

1.25 mm ferrules / APC

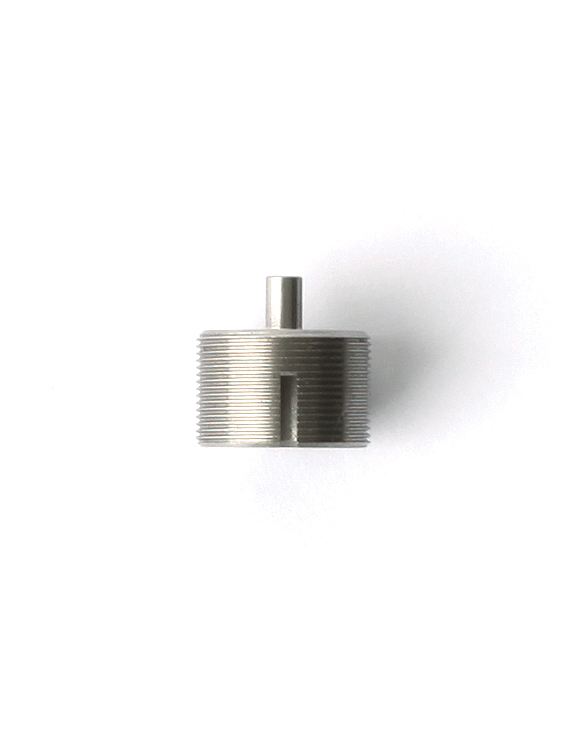

1.25 mm ferrules / UPC

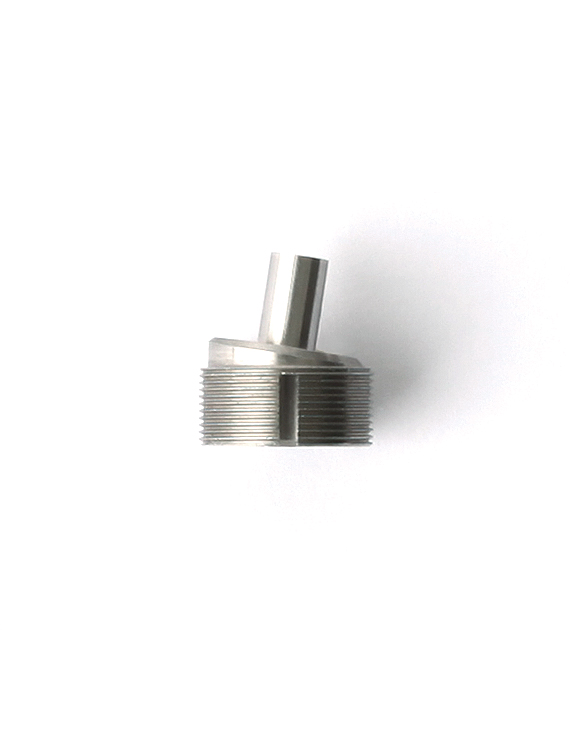

2.5 mm ferrules / APC

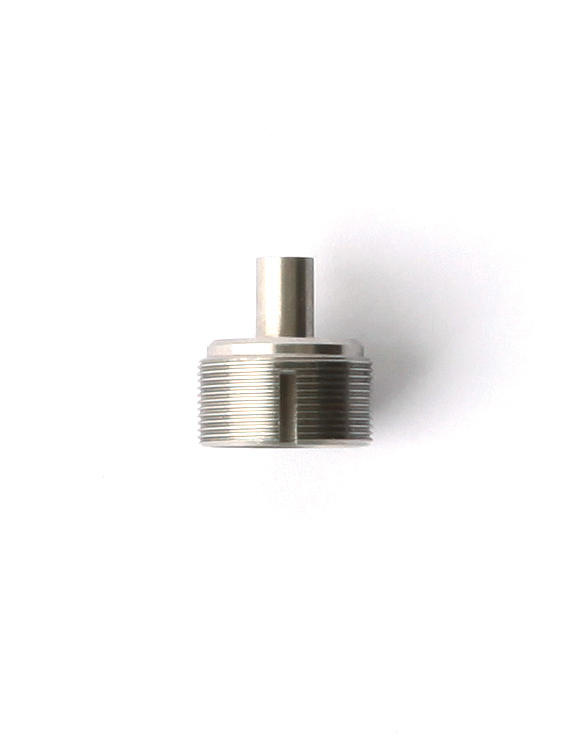

2.5 mm ferrules / UPC
