HIGH PRECISION CLEAVER

V7/V7+

High-precision optical fiber cleaver V7 cuts optical fiber very precisely. V7 can be used for a wide range of holders for up to twelve ribbon cables as well as universal holders for 250um, 900um and 3.0mm fibers and flat cables. V7 fiber cleaver is easy and simple to operate in two steps to maximize work efficiency.

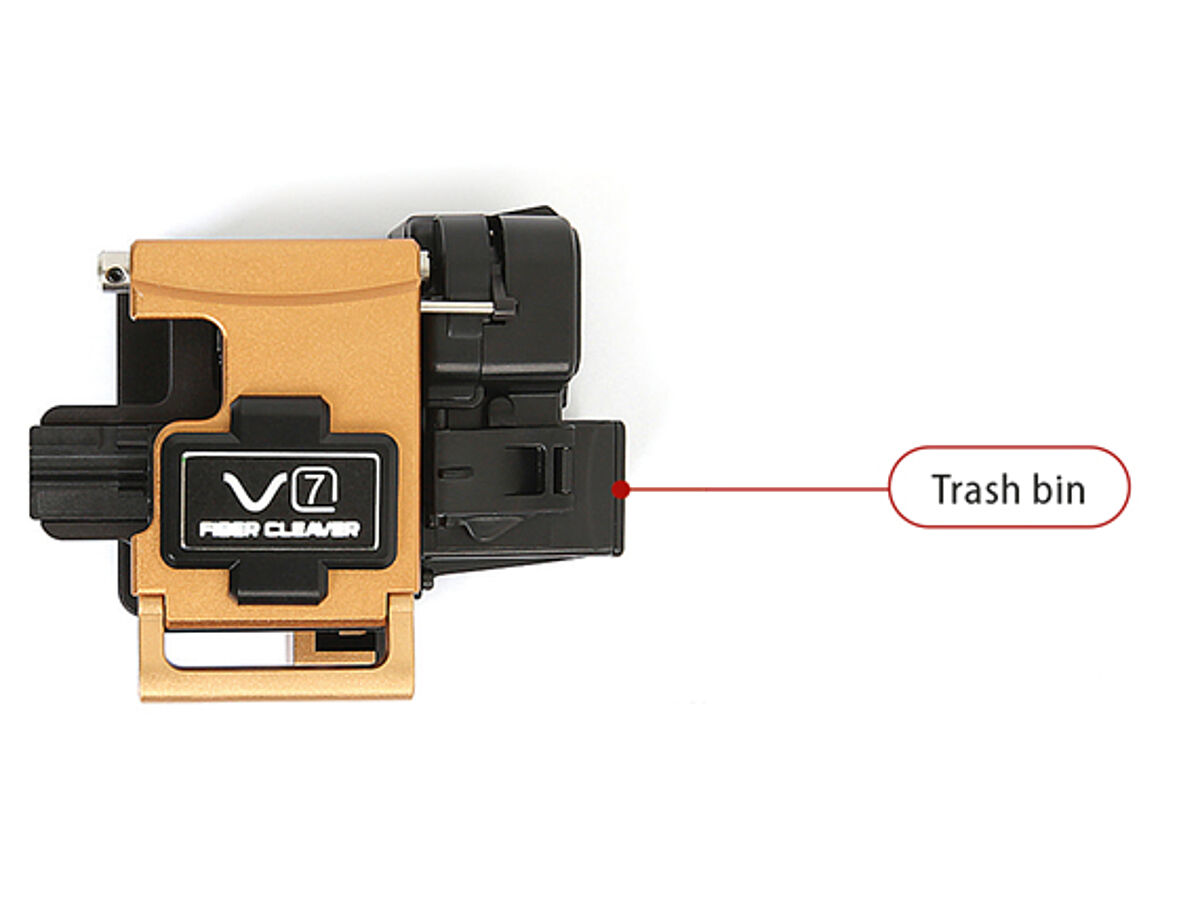

V7 is available with optional products which automatically pick up pieces of optical fiber (cutting blades provide more than 48,000 cuts with easy blade position selection). V7's superior cutting capability allow users to nail the most accurate cut and be prepared for the ideal fusion splicing.

Applicable to Single and Ribbon Fiber

Up to 12 ribbon cable and universal holder for 250µm, 900µm, 3.0mm fiber cable.



fibersµmmm
1-12250-9003.0

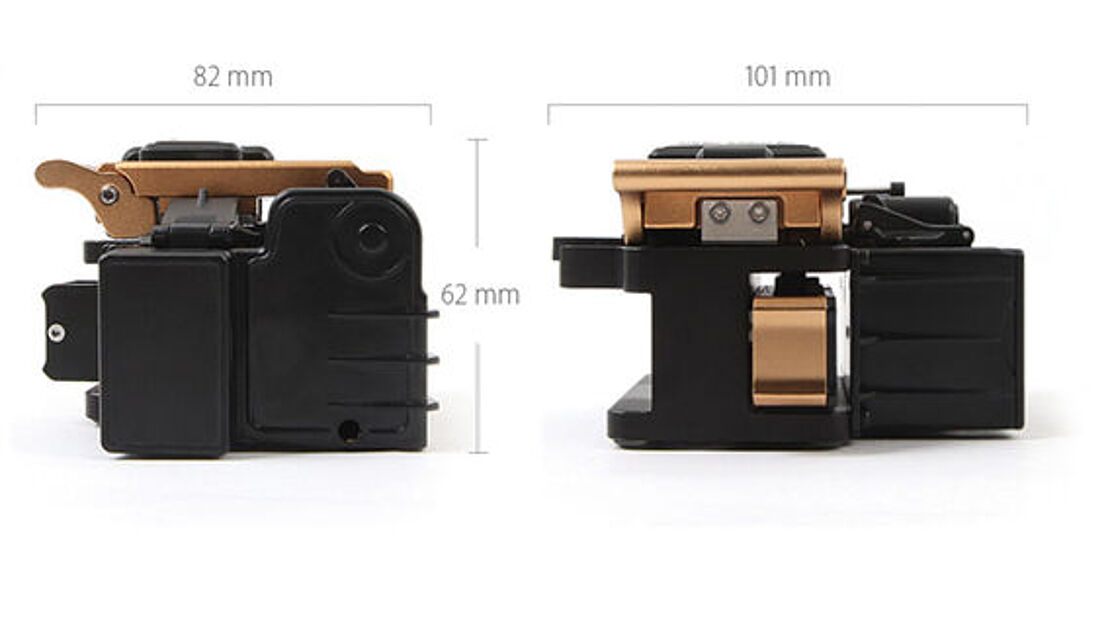

Dimensions V7+

Type
Single fiber and ribbon fiber
Cladding
Diameter 125µm
Applicable Fiber Cable
Single Fiber : 160µm to 900µm / 2mm~3mm and drop cable
Ribbon Fiber : 2 to 12 ribbon fiber cable
Cleaved Length
Single Fiber : 5mm~20mm Coating diameter ≤ 250µm) / 10mm~20mm (Coating diameter >250µm)
Ribbon (Multi) Fiber : 10mm~20mm
Typical Cleaved Angle
Less than 0.5 Degrees
Typical Blade Life Span
Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Operation Steps
2 Steps
Reclaim Function
Blade pushback
Holder
Single: Universal holder
Ribbon: Replaceable holder

Packages V7 & V7+
